Fiber Laser Cleaning Machine
Location:

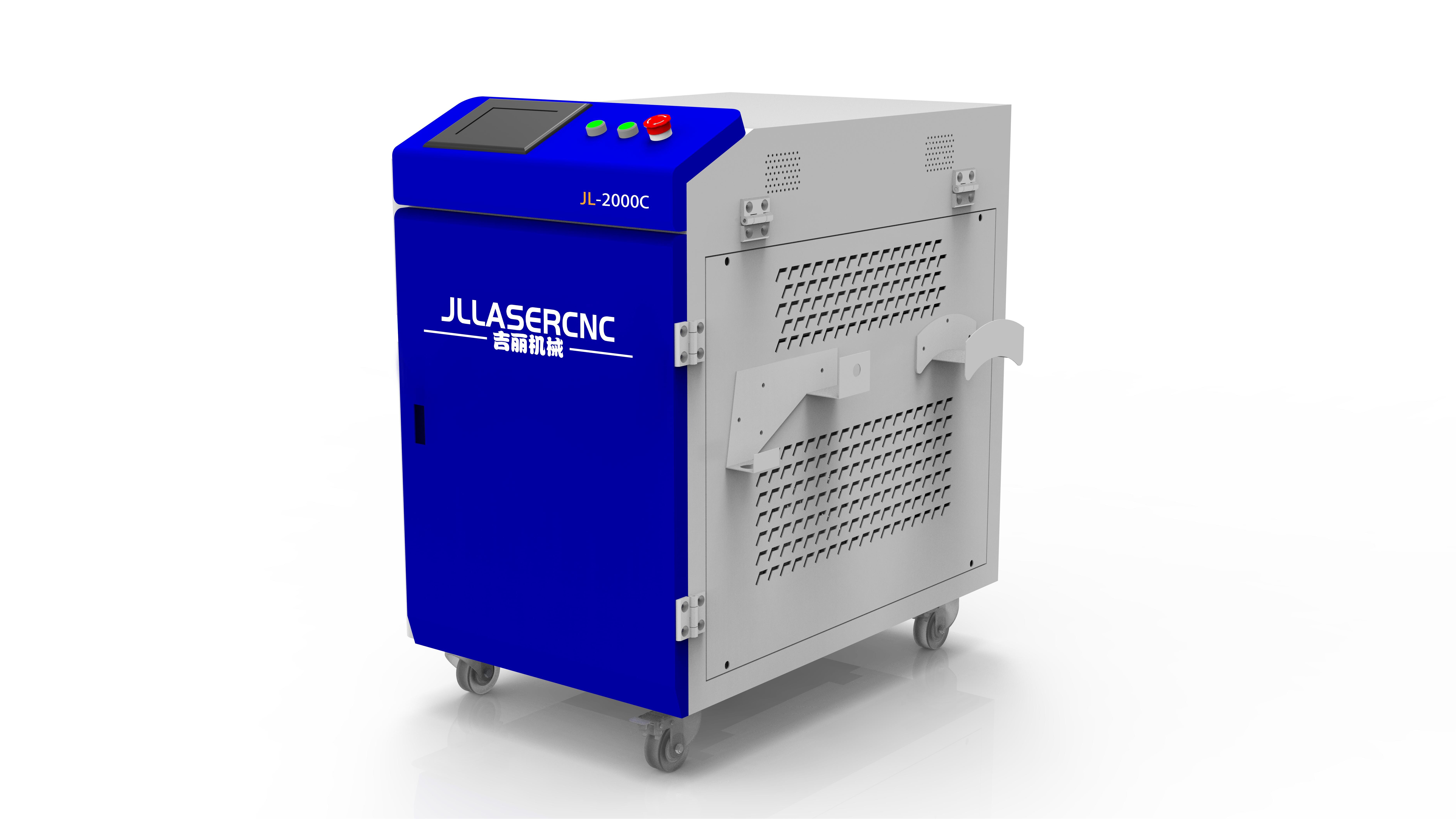

JL2000C fiber laser cleaning machine
Model : JL2000C
Category : Laser Cleaning Machine
Payment : TT, Visa, Mastercard, Credit Cards, Paypal, Western Union
Supply Ability : 200 Sets / Month
Warranty : 2 Years

Description

Laser cleaning Machine is a high-tech product of the new generation of surface treatment, which causes the surface dirt, rust or coating to evaporate or peel off, and effectively removes the surface adhering or surface coating of the cleaning object at high speed.

Our Laser cleaning machine can be used car perimeter, rubber mold, heritage restoration, ship, rail transit, high-end machine tools Remove coating, degumming, lithographic surface treatment, oil removal, pretreatment, paint removal, rust removal,etc. which can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.

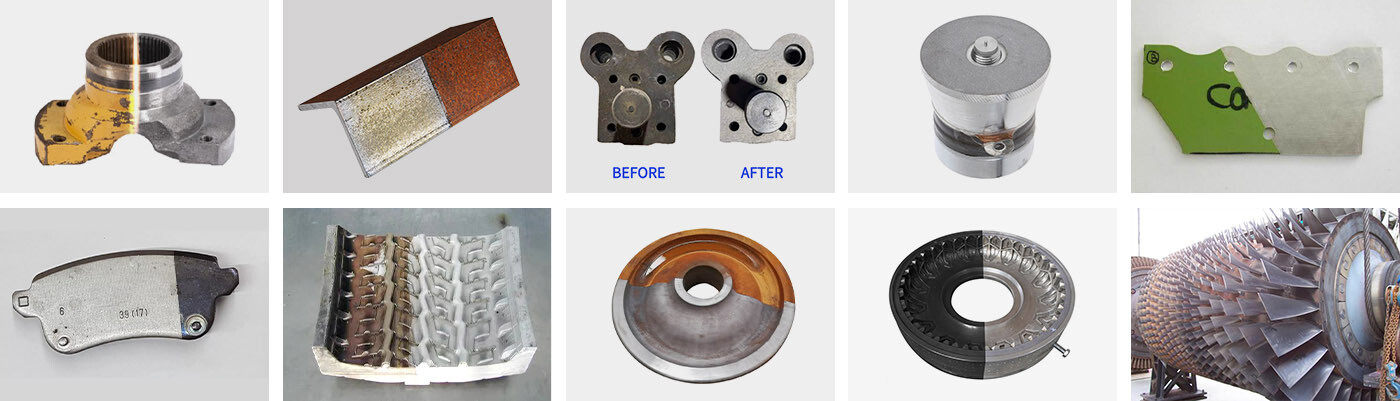

Application:

* Surface oil, stains, dirt cleaning

* Metal surface rust removal

* Rubber mold residue cleaning

* Welding surface / spray surface pretreatment

* Surface coating, coating removal

* Surface paint removal, paint stripping treatment

* Stone surface dust and attachment removal




Features :

1.Using the best fiber laser in China

2.Non-contact cleaning, without damage

3.High precision cleaning, good precision of position cleaning, selective washing.

4.Without any chemical cleaning fluid and no consume materials,safe and environment-protect

5.Simple operation,hand-hold clean or with a mechanical hand to clean .

6.Good cleaning effect and save time.

7.Laser cleaning system is stability, almost no maintenance


Comparison with Traditional Clean Methods:


ComparisonLaser CleaningChemical CleaningMechanical GrindingDry ice cleaning
Washing Methodnon-contact cleaningcontact cleaningAbrasive contact cleaningnon-contact cleaning
Harm to base materialNoneYesYesNone
Washing EfficiencyHighLowLowMid
ConsumablePowerChemical DetergentAbrasive paper, grinder, abrasive stoneDry Ice
Washing resultVery good, very clearMedium, unevenMedium, unevenGood, uneven
Precision WashingAccuracy controllable. High precisionUncontrollable, low precision.Uncontrollable, medium precision.Uncontrollable, poor precision.
Safety/EnvironmentNo pollutionChemical pollutionDust pollutionNo pollution
OperationEasy to operate, portable or automation optional.Complicated process, higher technical requirement of the operator. Pollution prevention measures required.Need more time & manpower. Pollution prevention measures required.Easy to operate, portable or automatic.
InvestmentHigh investment on machine. But no consumable, low maintenance costLow investment on machine. But expensive consumablesMedium investment on machine. High man-power cost.Medium investment on machine. High consumable cost.


Features

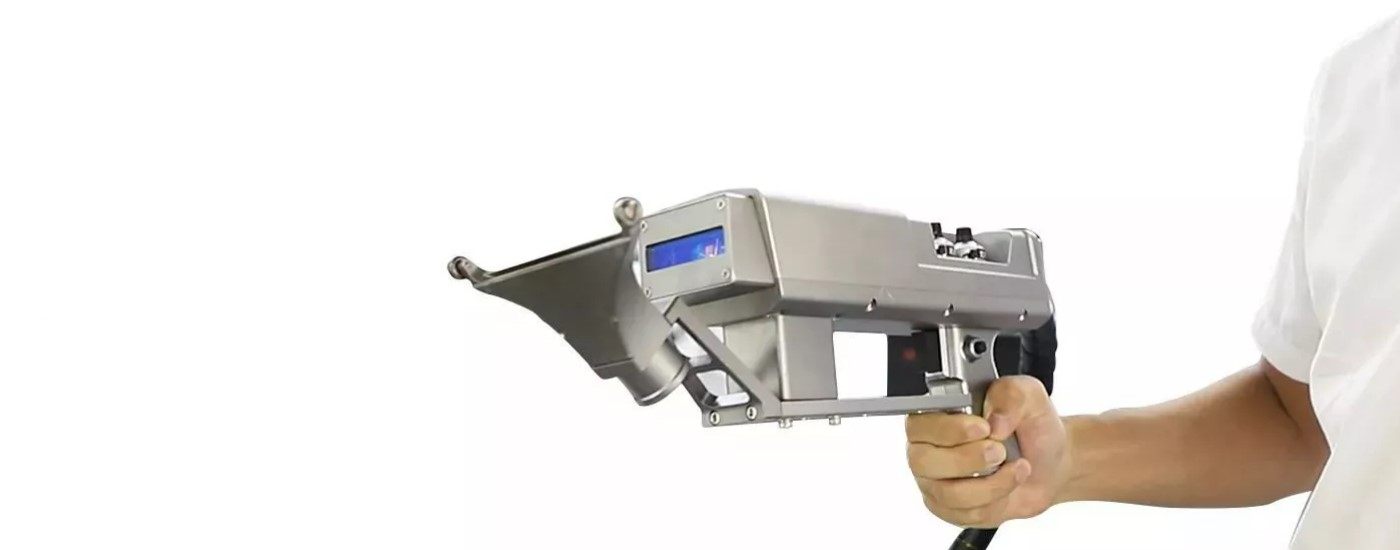

Laser Cleaning Head :

• Using a hand-held cleaning gun design, it can response to various objects and angles flexibly.

• Easy to operate and convenient to move.

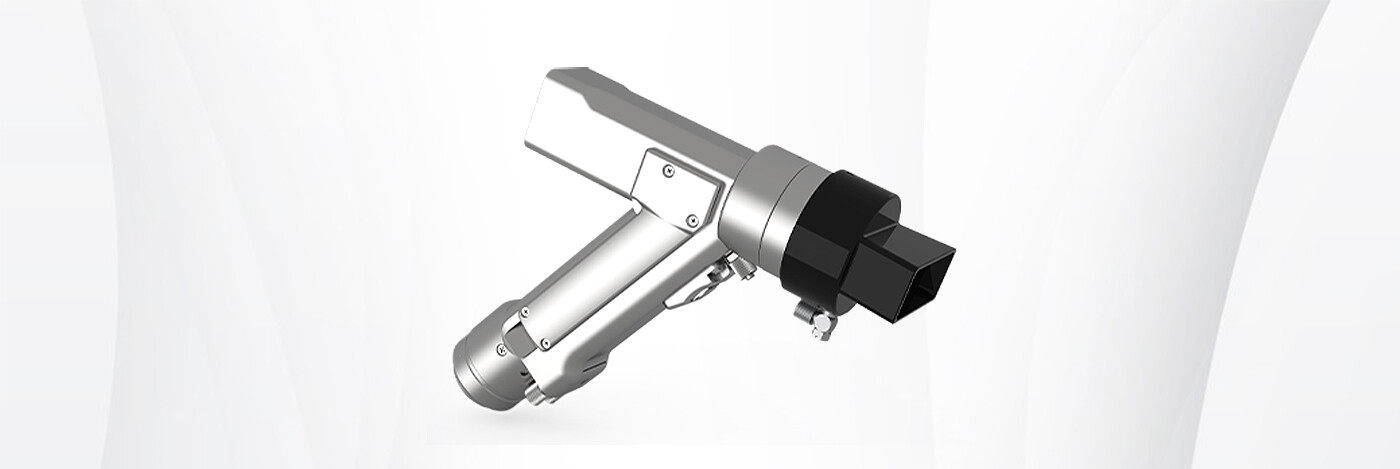

Hand-Held Design, Easy to Carry:






Compact size,Easy to Move:

• Machine is integrated and less floorspace occupation

• 10m(≥200w) optical fiber cable enables long-distance cleaning

• Top push&pull handle and bottom universal wheels help useres to move machine easily

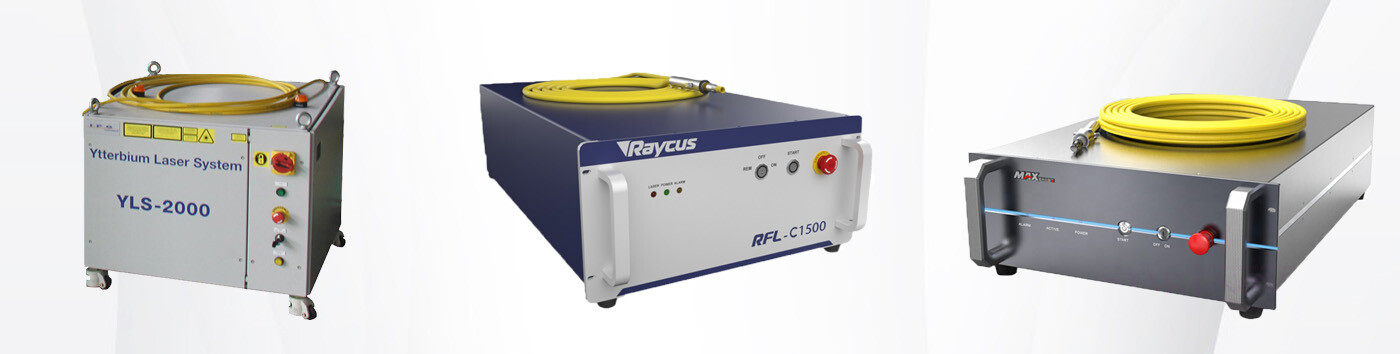

Laser Source :

Top brand fiber laser source Max, high power. The energy density is high, the heat input is low, the amount of thermal deformation is small.

Handheld Portable Fiber Laser Welding Machine

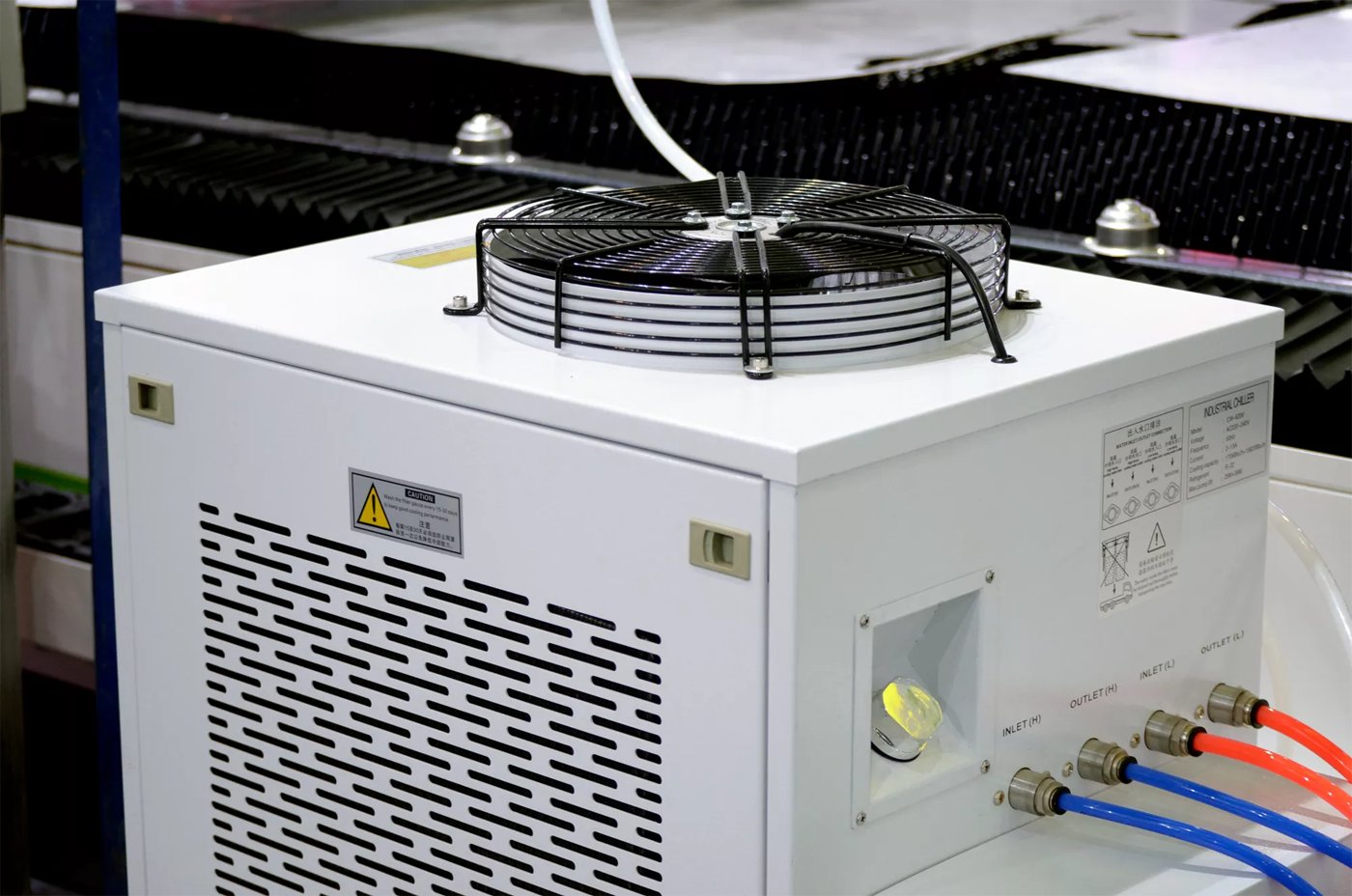

Water Chiller :

High cooling rate, which can weld fine weld structure and good joint performance.

3 in 1 Handheld Fiber Laser Welding Cleaning Cutting Machine for Metal

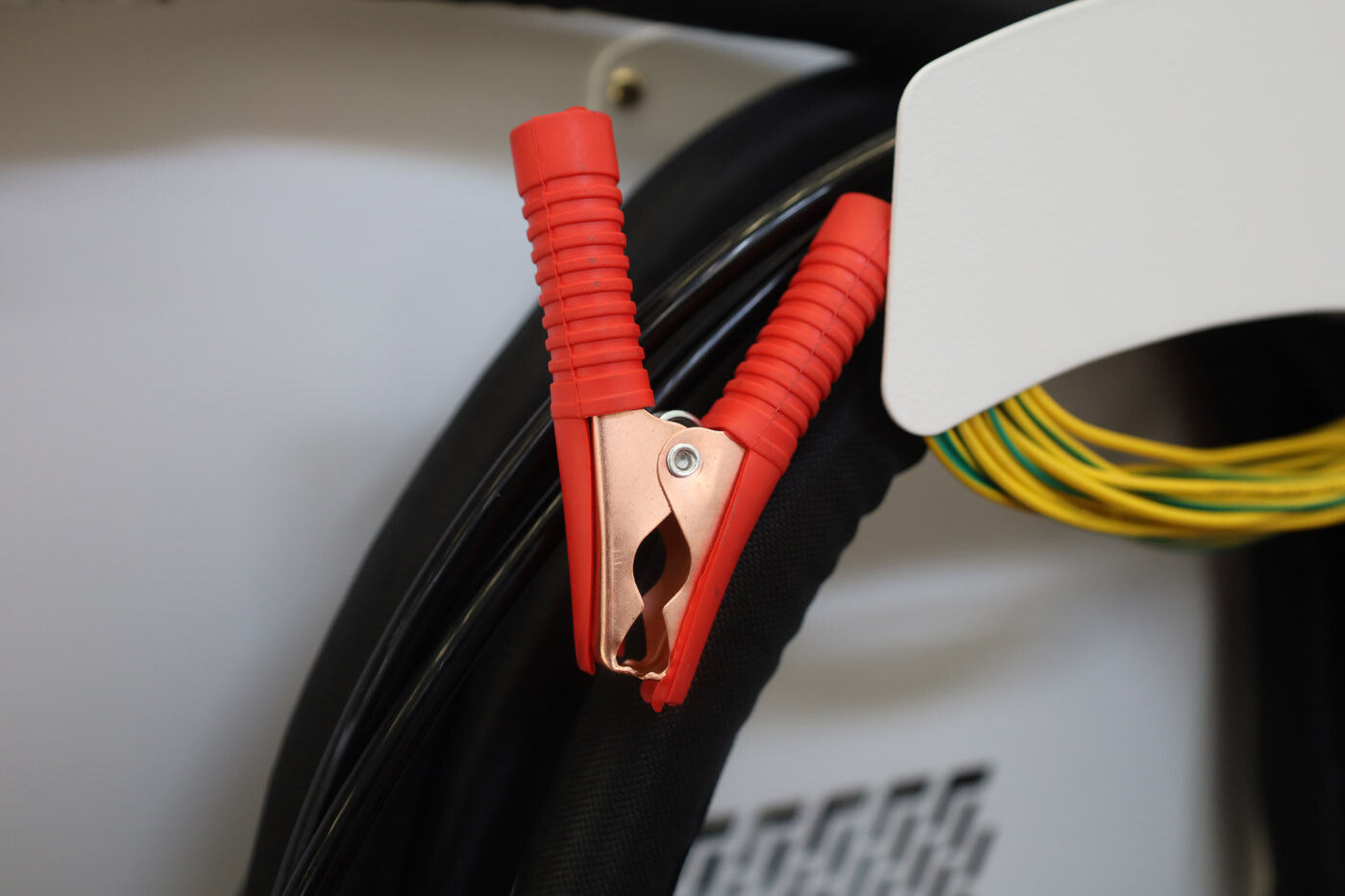

Safety Clip :

There have the red safety clip on the side of the laser head. The operator must fix the clip on  the metal materials, then the machine could normal working.

This is the protection for the operator, which give the more safe working environment.




Parameters

ModelJL1500CJL2000CJL3000C
Laser power1500W2000W3000W
Collimating focal length50cm
Focus length40cm
Cooling chillerIndustrial water chiller
Operation systemRuida brand
Size123×85×125cm
Laser SourceJPT/Raycus/MAX
Cleaning width0-15cm
Fiber wire length10 meters
10 metersRelFar
Operate modeContinuation/ Modulate
Adjustable format0-15CM
CertificateCE,ISO,CCC
Weight300kgs
